12 Point Flange Bolts Manufacturer

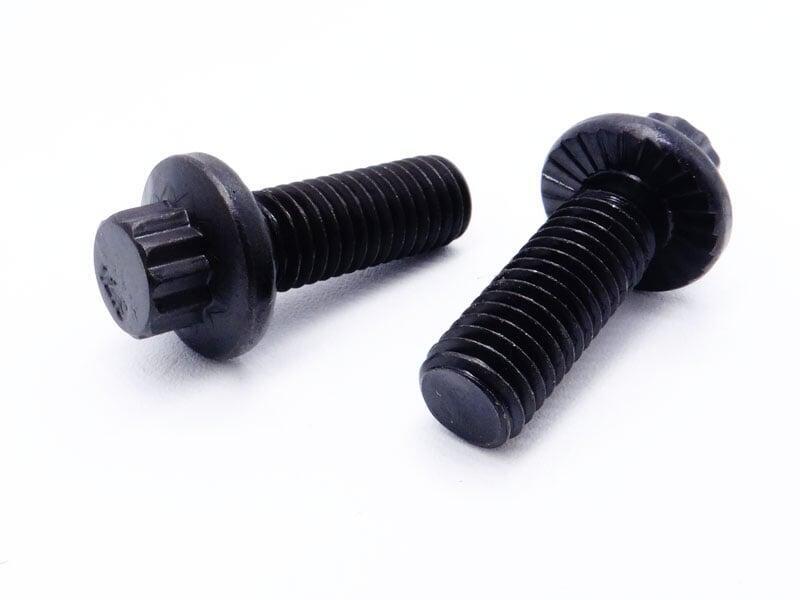

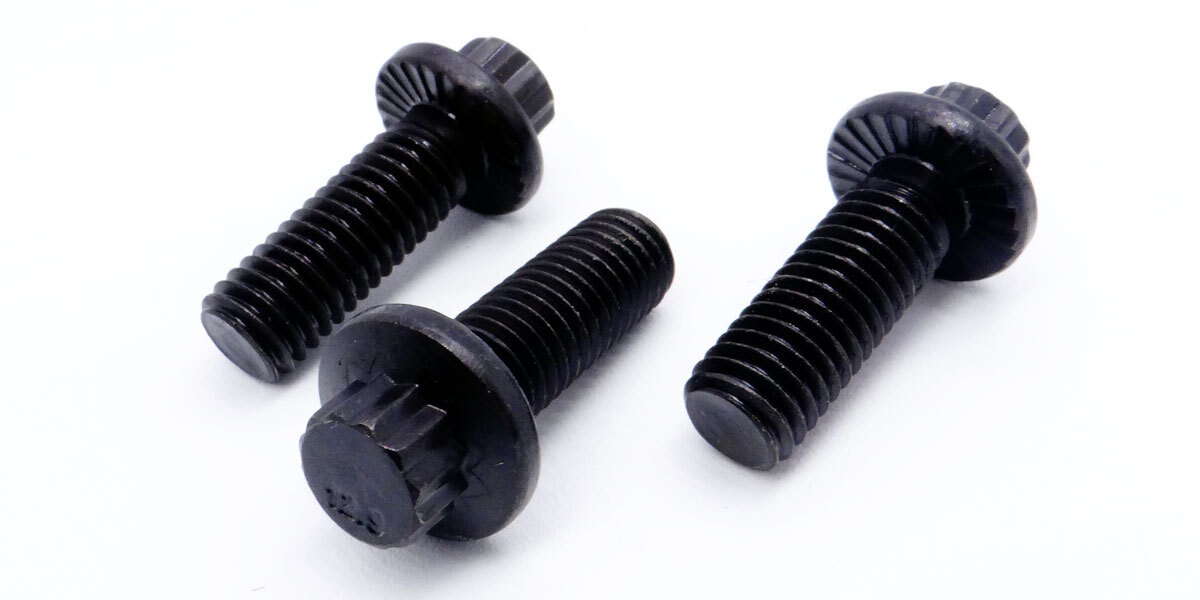

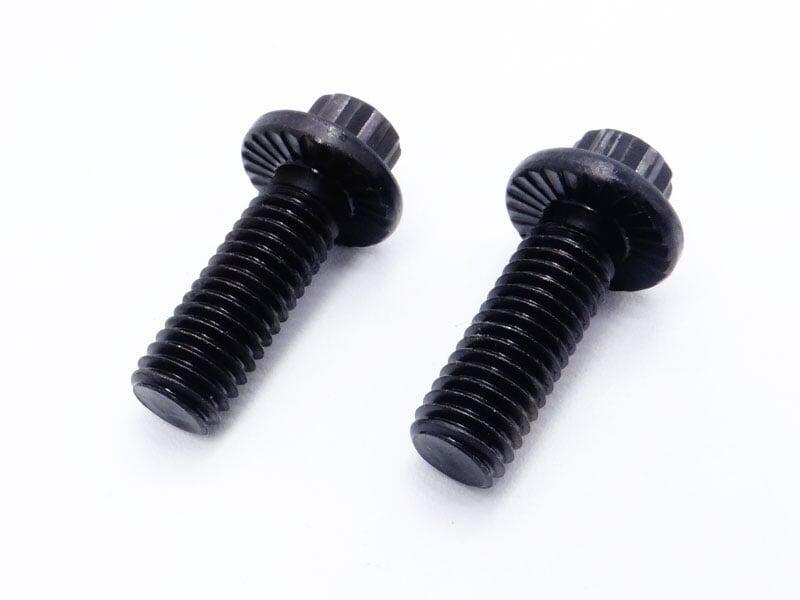

12 Point Flange Bolts (also known as 12 Point Flange Cap Screws) the head makes 12 points of contact with a wrench to handle more torque than a socket head or hex head screw. 12 Point Flange Bolts good for high-strength fastening, these screws are made from steel comparable in strength to Grade 9 steel. Use them for heavy duty stamping applications as well as earth-moving machinery, such as bulldozers and excavators.
Custom Made
12 Point Bolts
King Tower provide 12 Point Bolts to a wide range of industries needing OEM/MRO or custom-designed solutions.
| Product Name | 12 Points Flange Bolts |
| Place of Original | China |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| 12 Point Flange Bolts Diameter | M3 - M20 |
| 12 Point Flange Bolts Length | 6mm - 150mm |
| Head Type | Hex, Square, Round, Hex flange, Flat, T-head & Triangula |
| Driver Style | Phil, Slotted, Hex socket, Torx & square slot etc |
| Material | Steel, Alloy Steel, Stainless Steel |
| Surface Treatment | Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver), Black Oxide, Passivation, Polish, Geomet, Dacroment, Anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated ect. |
| Manufacturing Process | Wire Drawing, Cold Heading,Thread Rolling, Heat Treatment, Surface Plating, Inspection, Packing |
| Delivery Date | Regular product is about 7-15 days, custom product will according to special requirement |
| Certificate | IATF16949:2015, ISO9001 |
12-Point Flange Bolts Metric/Imperial Thread Chart
| Thread Size | M3 | #5 | 1/8'' | M4 | #8 | 3/16'' | #10 | M5 | M6 | 1/4'' | 5/16'' | M8 | 3/8'' | M10 | 7/16'' |
| Dimeter mm | 3.0 | 3.17 | 3.17 | 4.0 | 4.16 | 4.76 | 4.82 | 5.0 | 6.0 | 6.35 | 7.93 | 8.0 | 9.52 | 10.0 | 11.11 |
| UNC Pitch | 0.5 | 0.63 | 0.63 | 0.7 | 0.79 | 1.05 | 1.05 | 0.8 | 1.0 | 1.27 | 1.41 | 1.25 | 1.58 | 1.5 | 1.81 |
| UNF Pitch | 0.35 | 0.57 | 0.57 | 0.5 | 0.70 | 0.79 | 0.79 | 0.5 | 0.5 | 0.90 | 1.05 | 1.0 | 1.05 | 1.0 | 1.27 |
| Thread Size | M12 | 1/2'' | M14 | 9/16'' | 5/8'' | M16 | M18 | 3/4'' | M20 | 7/8'' | M24 | 1'' | |||
| Dimeter mm | 12.0 | 12.7 | 14.0 | 14.28 | 15.87 | 16.0 | 18.0 | 19.05 | 20.0 | 22.22 | 24.0 | 25.4 | |||
| UNC Pitch | 1.75 | 1.95 | 2.00 | 2.11 | 2.30 | 2.0 | 2.5 | 2.54 | 2.5 | 2.82 | 3.0 | 3.17 | |||
| UNF Pitch | 1.5/1 | 1.27 | 1.50 | 1.41 | 1.41 | 1.50 | 2.0 | 1.58 | 2/1.5 | 1.81 | 2/1.5 | 2.11 |
Fastener Suppliers Worth Paying Attention to
King-Tower over 20 years specializing in manufacturing non-standard fasteners to specific industrial needs.
Over 200 Units Produced Machine
King Tower equipped with different production machine contain cold heading forming machine, thread rolling machine, programmable CNC machines, automatic lathe machines, spring machine and stamping machine, and include secondary process like drilling, cutting and grooving, total machine over 200 units to meet the complex fastener production.
Diverse range of test machines to ensure the quality and functionality
King Tower with a comprehensive array of testing machinery, that can meticulously assess various aspects, including salt spray test machine, two-dimensional image measuring instrument, hardness test machine, optical image screening machine and torque machine.
Diversity of customized fasteners
King Tower produced screw thread diameter from 0.8mm to 20mm, length from 2mm to 400mm, with specialized material include carbon/alloy steel, stainless steel, aluminum, brass and titanium. Full rang of surface treatment including plating, electrophoresis, coating, Dacromet, laser engraving and vacuum coating.
