Custom SEMS Screws & Screw Washer Assemblies

Cutom Made Screw and Washer Assembly

Screw and washer assmbly (SEMS screw) produced by cold heading forming machine, then assemblies the blank part and washer manually or by automatic washer and screw assemble machine, finally doing thread rolling to completed combination. King Tower manufacturing varieties of SEMS Screws, head, drive, size and finish options available, for your own custom fasteners project.

Send an Inquiry

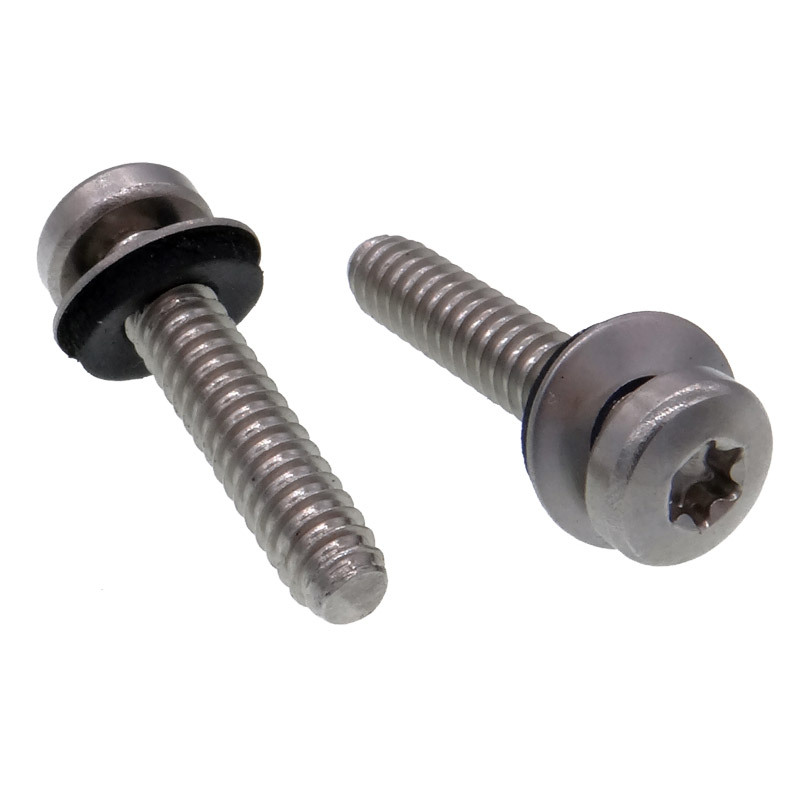

Stainless Steel Screw with Rubber Washer

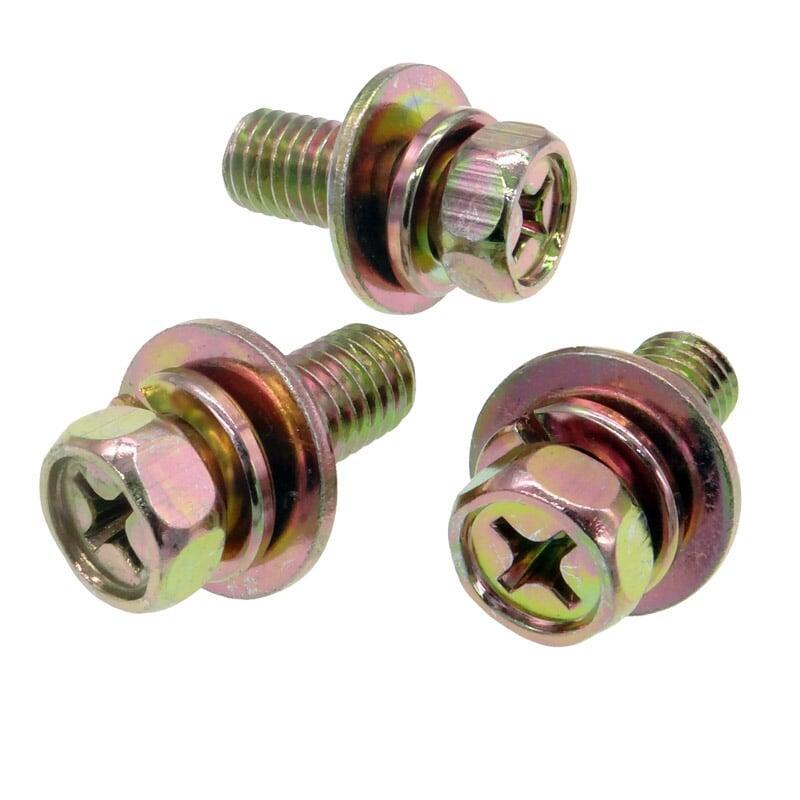

Screw with Assembled Washer Factory

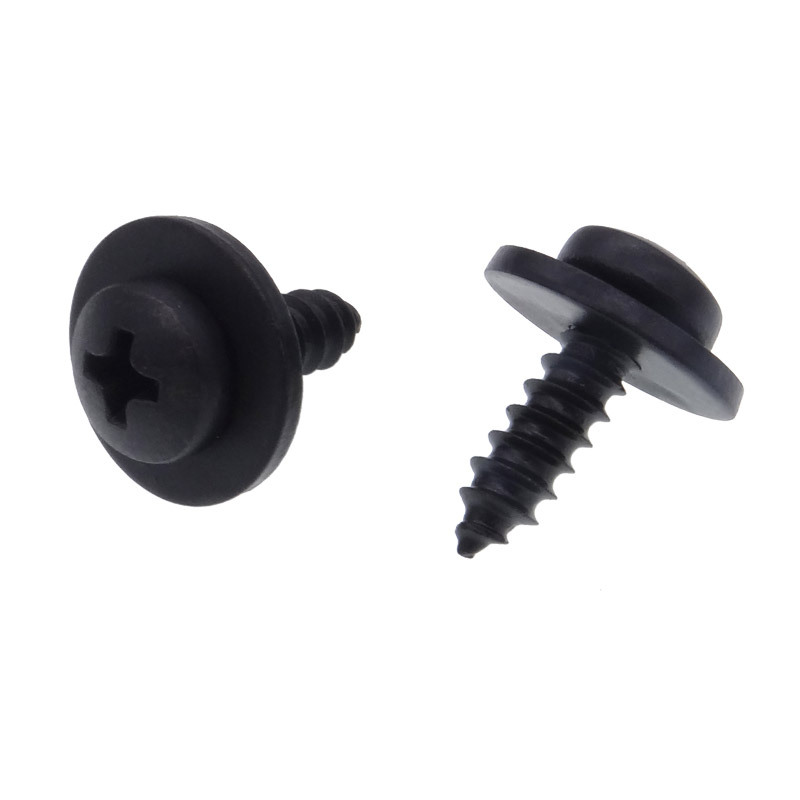

DIN7980 Pan Head Screw With Falt Washer

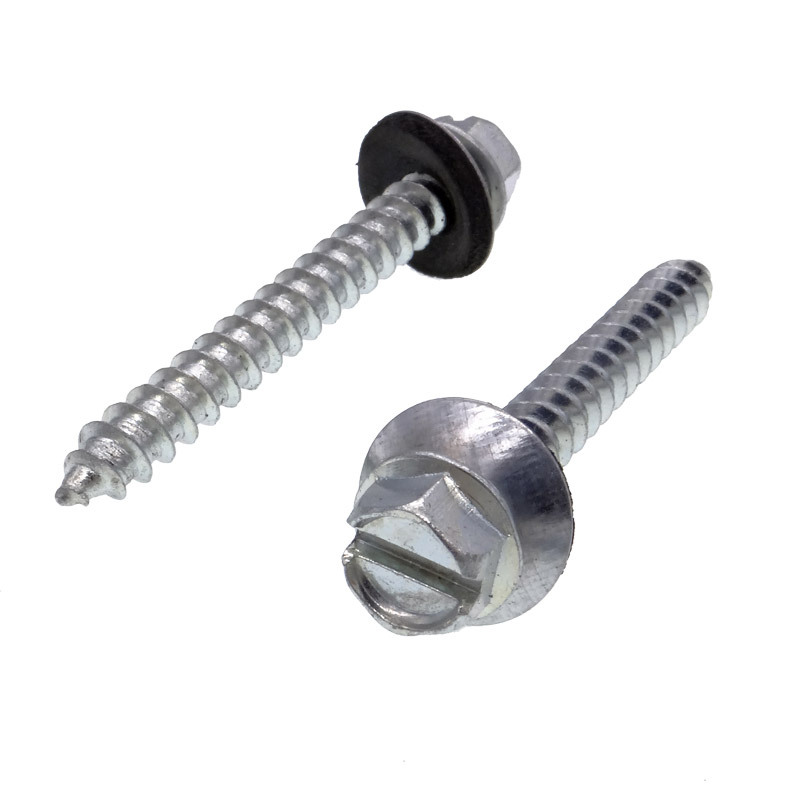

Screw with EPDM Washer Supplier

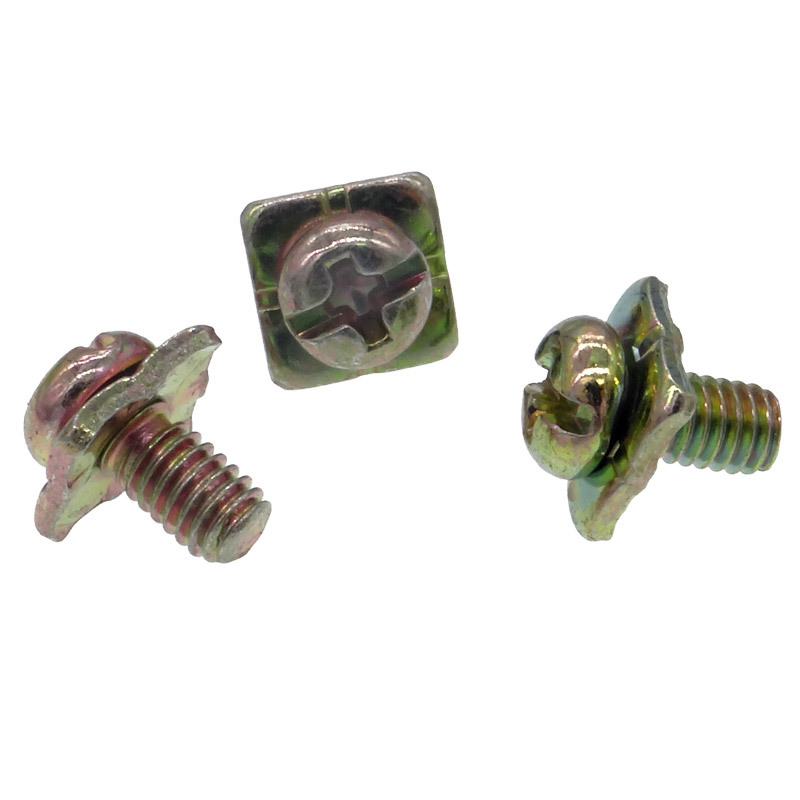

Square Washer SEMS Screw

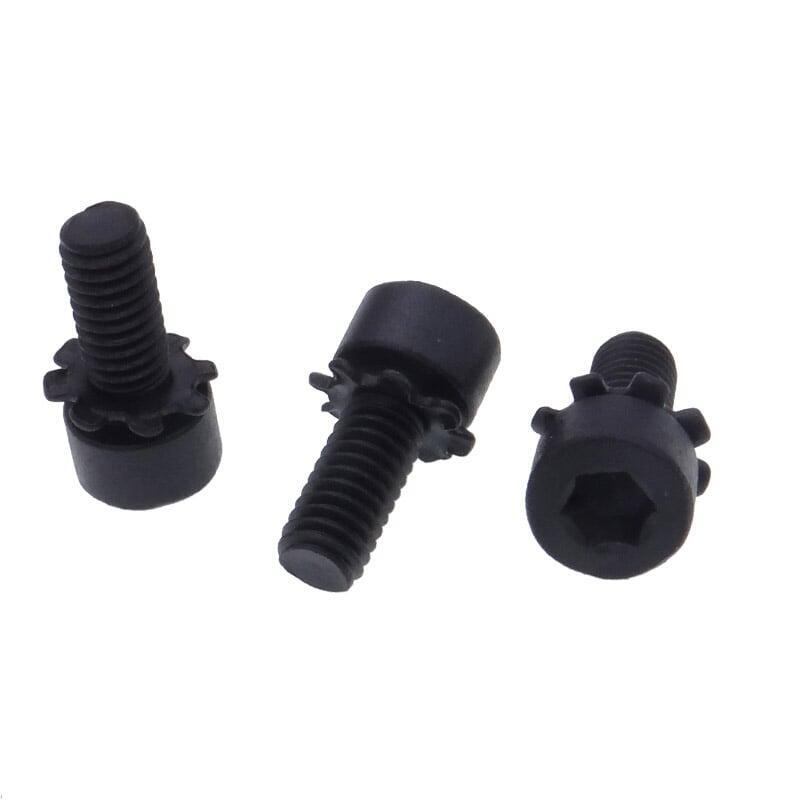

Socket Head Screw with Tooth Washer

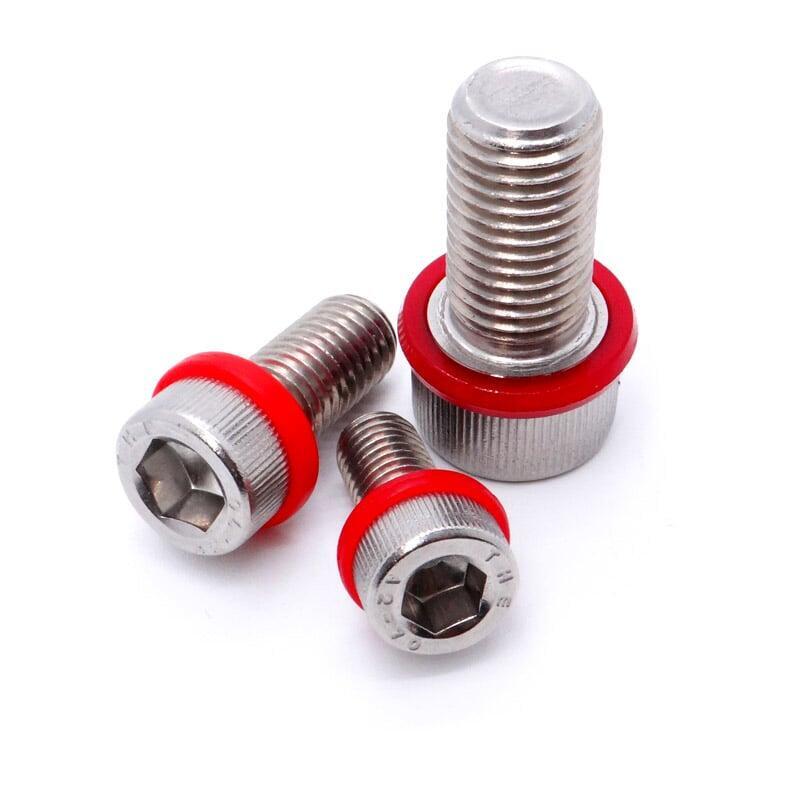

Hex Socket Screw with Sealing Washer

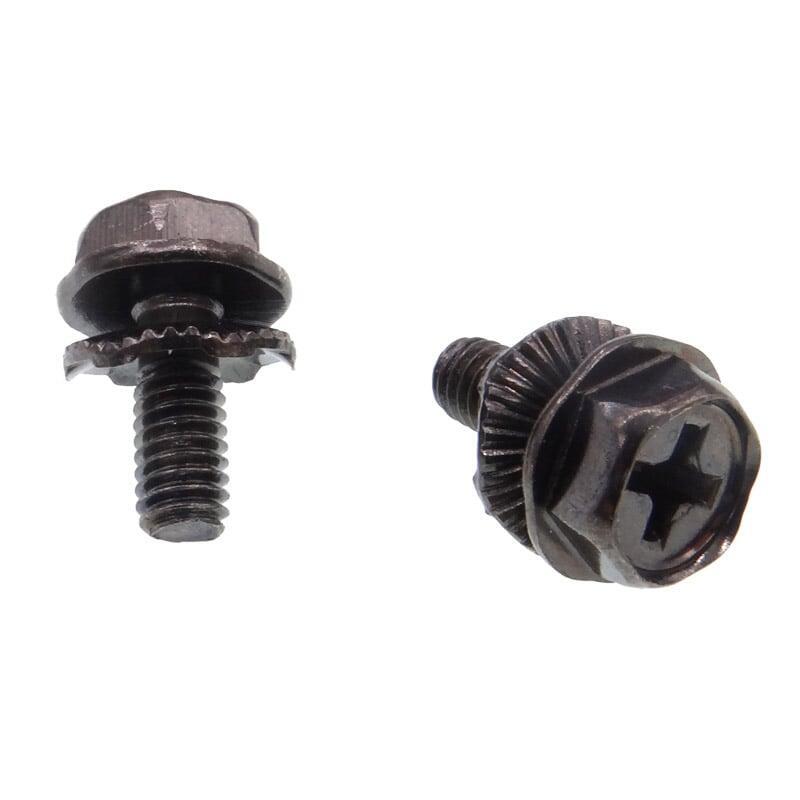

Hex Washer Head Screw with Special Washer

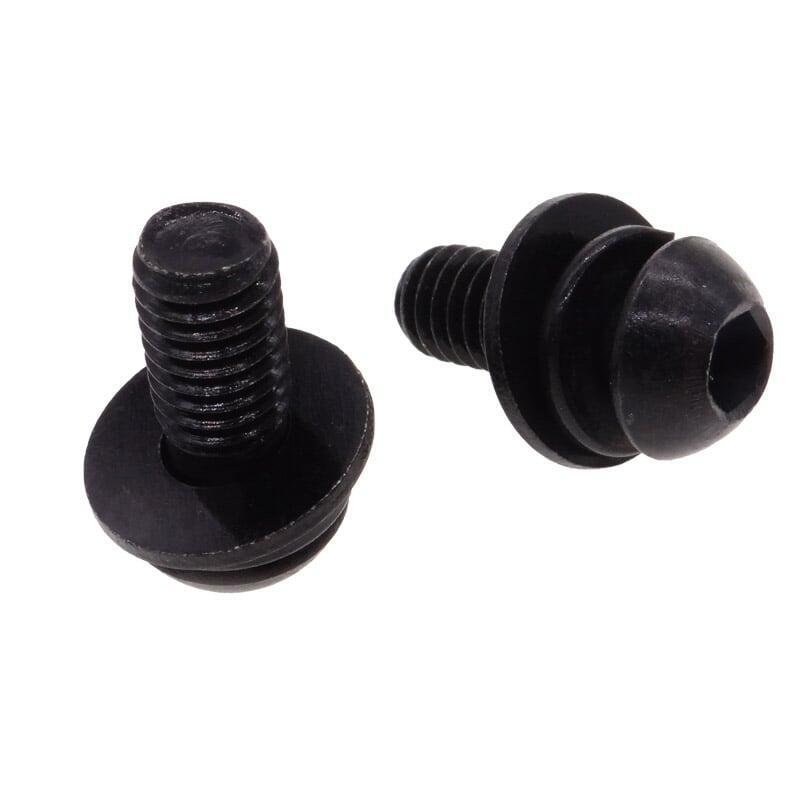

Button Head Screws with Assembled Washer

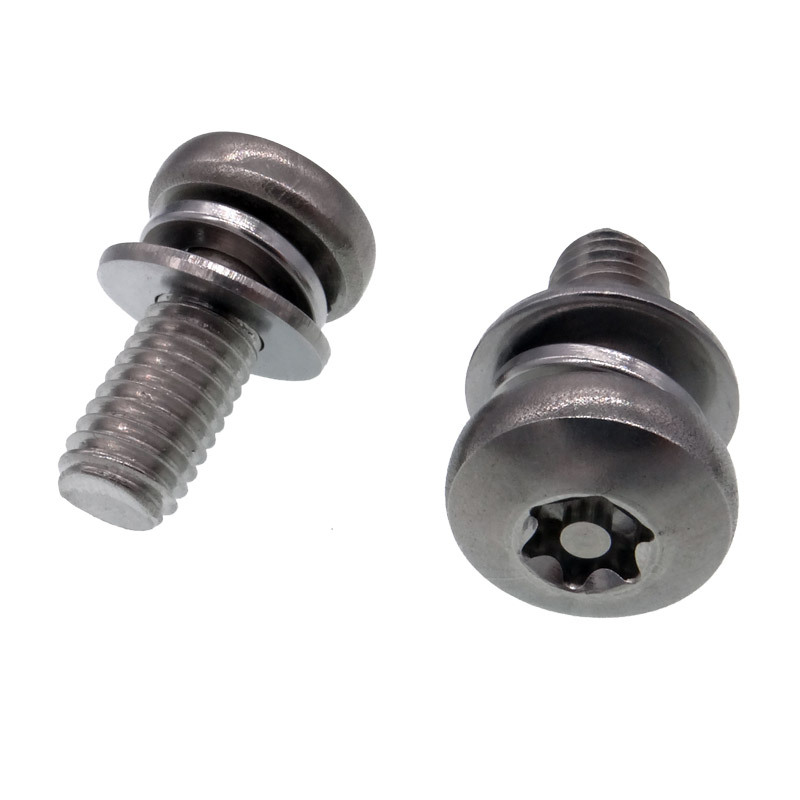

Custom Produced SEMS Screw

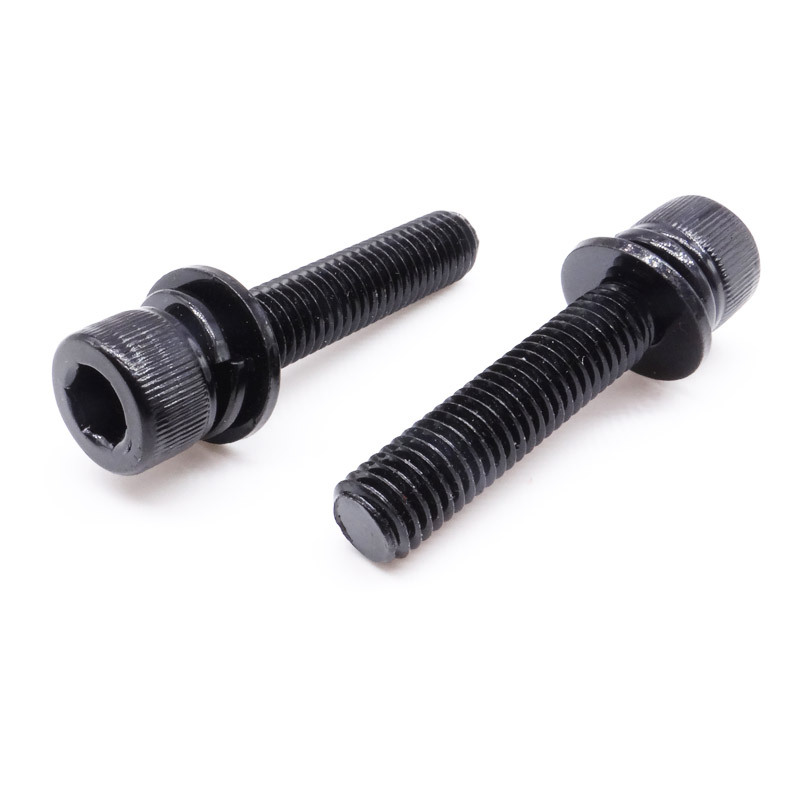

Hex Bolt Assemble Flat Spring Washer

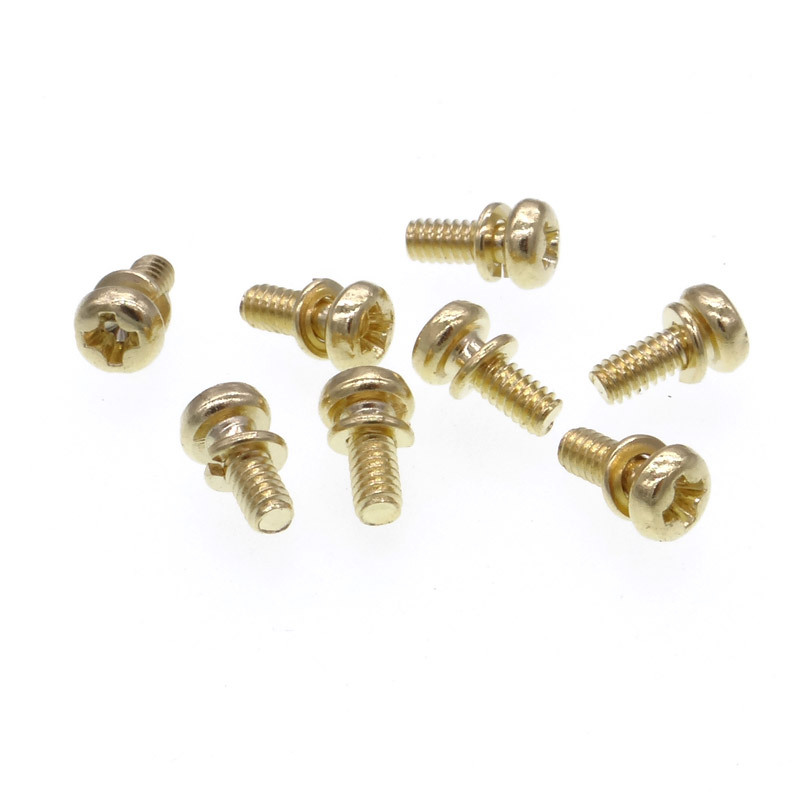

Pan Head Screw with Spring Washer

The Screw Type

This can be virtually any type of screw—machine screw, sheet metal screw, self-tapping screw, etc. It can have any head style (pan, hex, flange, truss, oval) and any drive type (Phillips, Pozi, Torx, slot). Common standards include ISO 7380-2 (for hex socket button heads with washers) and DIN 7980 (for Phillips pan head screws with washers).

The Washer Type

This is most commonly a split lock washer (helical spring washer) used to prevent loosening from vibration. However, it can also be a:

Flat Washer (for load distribution)
Tooth Lock Washer (internal, external, or countersunk)
Sealing Washer (rubber, neoprene, or copper for creating a fluid/gas seal)
Combination Washer (a flat washer and a lock washer pre-assembled)

SEMS Screw Comparison to Similar Fasteners

Feature	SEMS Screw	Flanged Screw	Screw + Loose Washer
Description	Two separate parts pre-assembled.	One single integrated part.	Two completely separate parts.
Washer Function	Free to rotate; can be a lock washer.	Fixed and does not rotate.	Free to rotate; can be any washer.
Vibration Resistance	Excellent (if using a lock washer).	Good (through increased surface area).	Excellent (if using a lock washer).
Assembly Speed	Very High (one part to handle).	High (one part to handle).	Low (two parts to handle).
Risk of Missing Washer	None (permanently attached).	None (integrated).	Yes (operator can forget).

About King Tower

With 20+ years custom made experience, we offer the most reliable source for high quality fastener parts ranging from screws and bolts to CNC machining parts, stamping parts, and more.

Why Choose Us

King Tower fasteners are meticulously crafted according to customer's drawings or samples to ensure that they meet precise specification. With years of production experiences and production machines, King Tower wide diverse range of fasteners are featured with hundreds of materials, head type, thread style, size, heat treatment, plating and secondary operation.

Over 200 units Machines

King Tower equipped with different production machine contain cold heading forming machine, thread rolling machine, programmable CNC machines, automatic lathe machines, spring machine and stamping machine, and include secondary process machine like drilling machine, cutting machine and grooving machines, to meet the complex fastener production.

Diverse range of test machines

King Tower with a comprehensive array of testing machinery, that can meticulously assess various aspects, including salt spray test machine, two-dimensional image measuring instrument, hardness test machine, optical image screening machine and torque machine. King Tower used these testing equipment to thoroughly evaluate the performance, durability, and safety of their offerings.

Diversity of customized fasteners

King Tower produced screw thread diameter from 0.8mm to 20mm, length from 2mm to 400mm, with specialized material include carbon/alloy steel, stainless steel, aluminum, brass and titanium. Full rang of surface treatment including electroplating (Blue, Black, White, Yellow, Rose Gold, Silver ect.), Nickel, Passivated, DACROMET, laser engraving and vacuum coating.
