Custom Made Captive Screw
A captive screw (also known as a captive panel screw or captive fastener) that is retained within a target assembly or housing, typically with an unthreaded portion below the head, called a reduced shank. It is a specialized type of screw designed to remain attached to a component or panel even when it is fully unscrewed. This prevents the screw from being completely removed and lost. King Tower custom produced socket head captive panel screws, thumb-screw-head captive panel screws, spring loaded captive screws, and more.
Customize Captive Screw

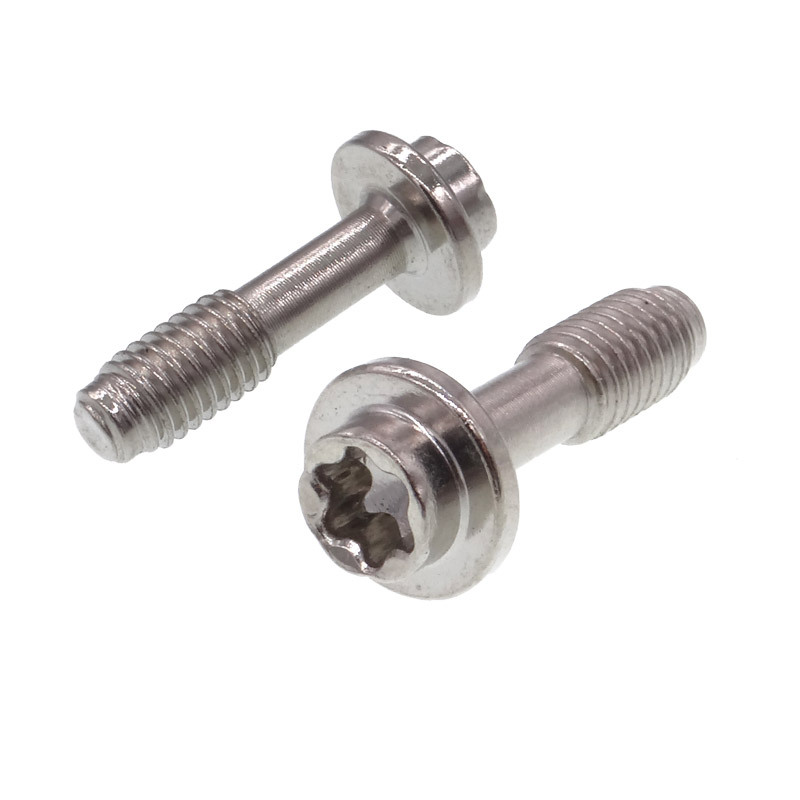

TORX Round Head Captive Screws Supplier

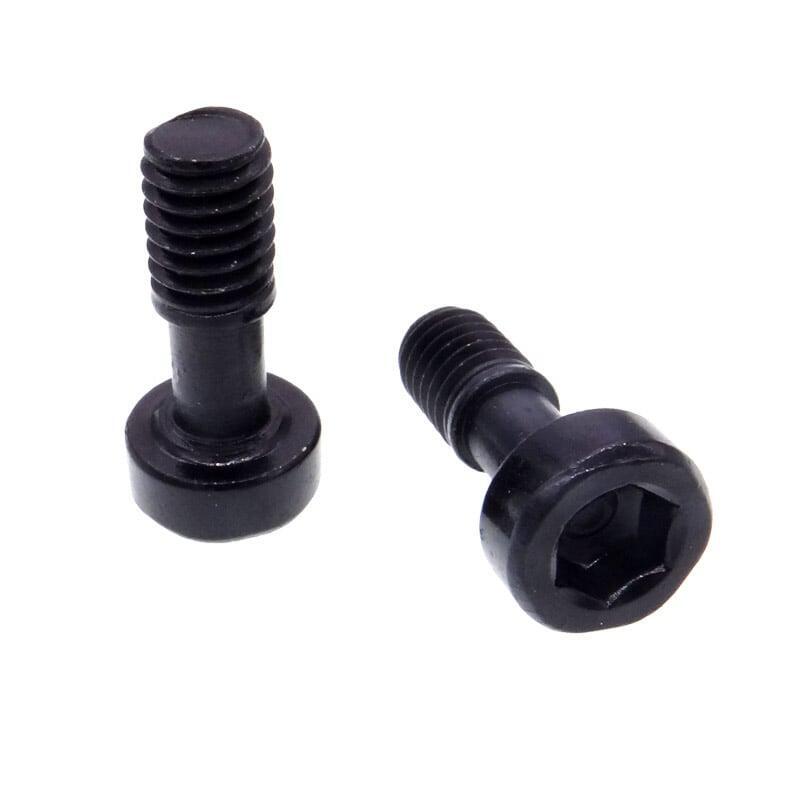

Socket Head Captive Panel Screws

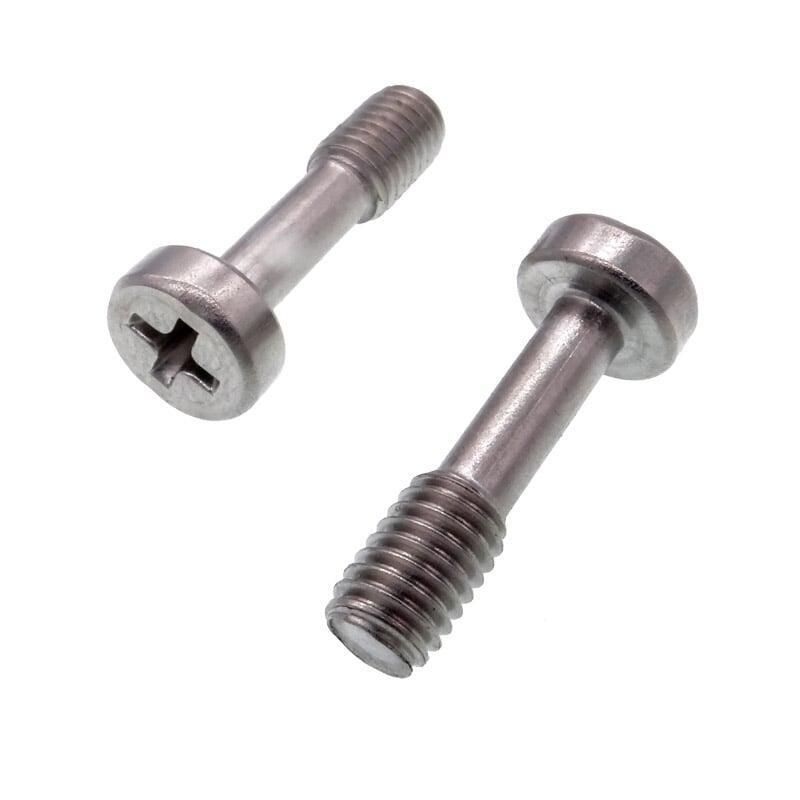

Round Head SS304 Captive Screw

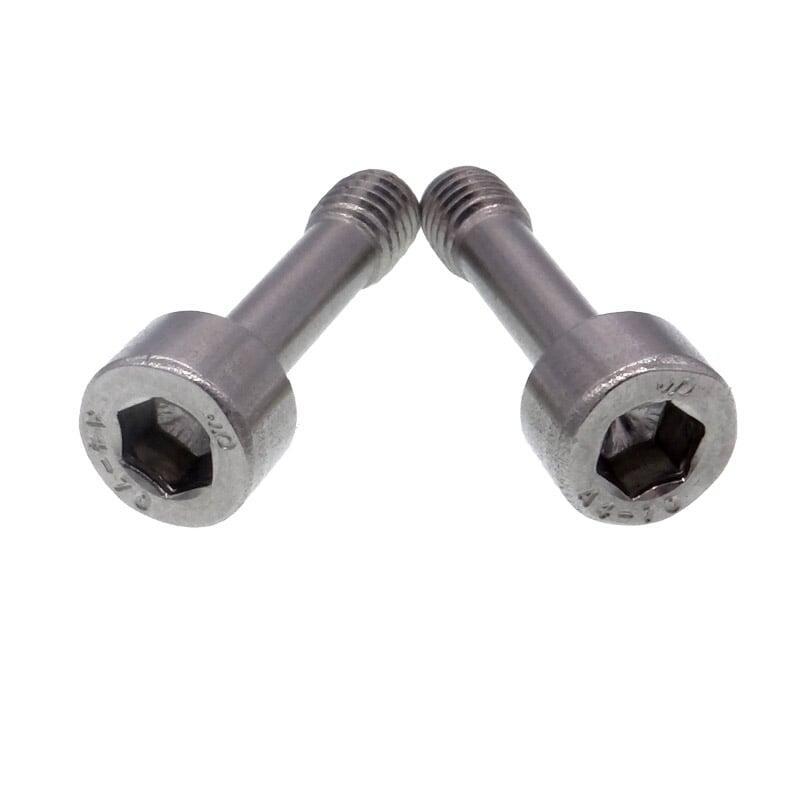

Low Cap Head Reduced Thread Captive Screws
Spring Loaded Captive Panel Screws Manufacturing
Clip-Retained (C-Clip / E-Clip)
This is the most common type. A metal retaining ring is snapped into a groove on the screw's shaft after it is inserted through the panel hole. The ring's diameter is larger than the hole, trapping the screw.
Swage-Mount
The screw assembly is inserted into a pre-drilled hole, and a specialized tool is used to swage (cold-form) the surrounding metal of the panel or a separate bushing around a groove on the screw. This creates a permanent, mechanical lock.
Rivet-Type
Similar to swage-mount, but the assembly includes a pre-assembled rivet body. The screw is inserted from the front, and the rivet is mechanically deformed from the backside to expand and clamp the panel material.
Press-Fit (Snap-In)
The assembly has molded-in plastic or metal barbs or a spring-loaded collar. It is simply pushed into a properly sized hole in the panel until the barbs or collar snap into place behind it.
Electronics
Securing PC boards, electronic panels, and sensitive components, allowing for frequent access without the risk of losing screws.
Automotive
Securing vehicle dashboards, door panels, and control components that require consistent reliability despite vibrations.
Industrial Machinery
Fastening access panels, safety guards, and maintenance covers on heavy machinery and control units.
Telecommunications
Base stations, antenna housings, network cabinets.
Medical Equipment
MRI machines, patient monitors, diagnostic devices.
Applications and Use Cases
Captive panel screws are essential anywhere panels, doors, or covers need frequent access and the loss of a screw is unacceptable. They are found in devices from consumer electronics and server racks to vehicle dashboards and industrial access doors, where they provide a secure connection that resists vibration and simplifies maintenance.
Spring Loaded Captive Panel Screw VS. Standard Captive Screw
| Feature | Standard Captive Screw | Spring-loaded Captive Screw |
| Primary Function | Prevents loss | Prevents loss and automates positioning |
| State when Open | May stay flush or flop around | Automatically extends to a ready position |
| Ease of Alignment | Good | Excellent. The screw guides the user |
| Vibration Resistance | Fair (depends on design) | Excellent (due to constant spring pressure) |
| Cost | Lower | Higher (more complex assembly) |
| Ideal Use Case | Panels accessed occasionally | Panels accessed frequently in high-vibration environments |
About King Tower
With 20+ years custom made experience, we offer the most reliable source for high quality fastener parts ranging from screws and bolts to CNC machining parts, stamping parts, and more.
Why Choose Us
King Tower fasteners are meticulously crafted according to customer's drawings or samples to ensure that they meet precise specification. With years of production experiences and production machines, King Tower wide diverse range of fasteners are featured with hundreds of materials, head type, thread style, size, heat treatment, plating and secondary operation.
