Custom Made Double End Bolts
A double-ended bolt (or stud bolt) is a fastener with threads on both ends and a plain, unthreaded section in the middle. It's primarily used to connect two or more components, particularly where one component can't be bolted in from the other end (such as in blind holes or large equipment housings). It is widely used in machinery, chemical industry, construction, energy and other fields.
Type of Double End Bolt
- Equal-diameter stud bolts: Both ends have identical thread diameters and pitches (e.g., M12×50, both ends have M12 threads). These are the most versatile type, suitable for connecting two components that require a mating nut or have identical threaded holes.
- Reducing-diameter stud bolts: Both ends have different thread diameters (e.g., M16 on one end, M12 on the other). These stud bolts are often used when one end requires high-strength fixation while the other requires flexible adjustment. For example, connecting a large motor base to a frame (larger-diameter threads on the fixed end enhance stability, while smaller-diameter threads on the connecting end facilitate disassembly).
- General connection studs: These have no special performance requirements and are used for securing general machinery and equipment (such as furniture and small motors).
- High-strength double end studs: Made from high-strength steel (such as 35CrMoA and 40Cr), they undergo heat treatment (quenching and tempering) to achieve tensile strengths of 8.8, 10.9, or even 12.9. They are used in applications requiring extremely high strength, such as high-pressure equipment, chemical reactors, and bridges.
- Stainless steel studs bolt: Made from stainless steels such as 304, 316, and 316L, they offer corrosion and rust resistance and are used in humid or corrosive environments, such as food processing machinery, medical equipment, and marine equipment.

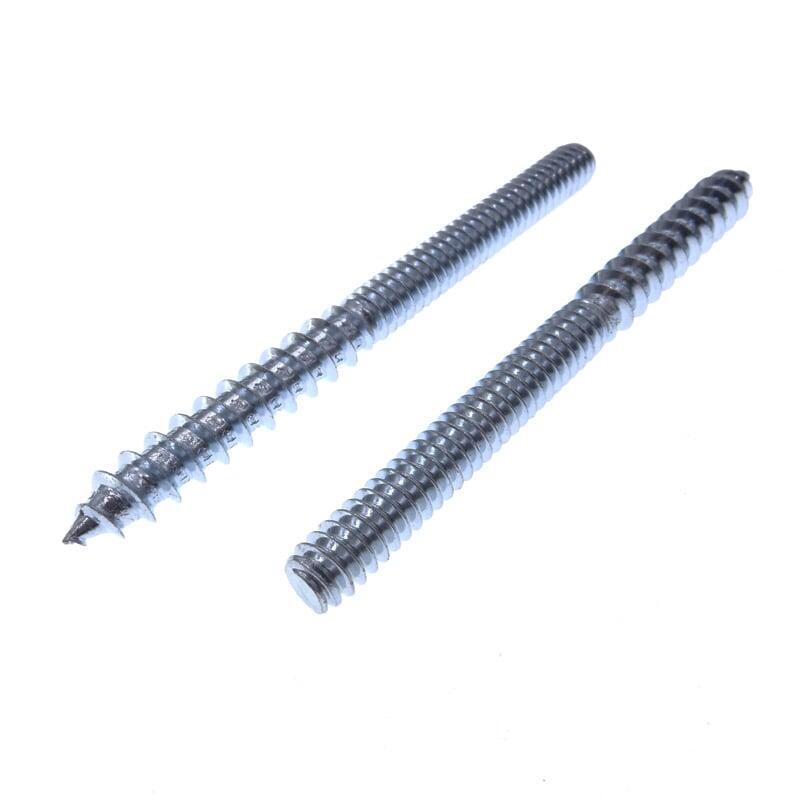

Double End Hanger Bolt Screw

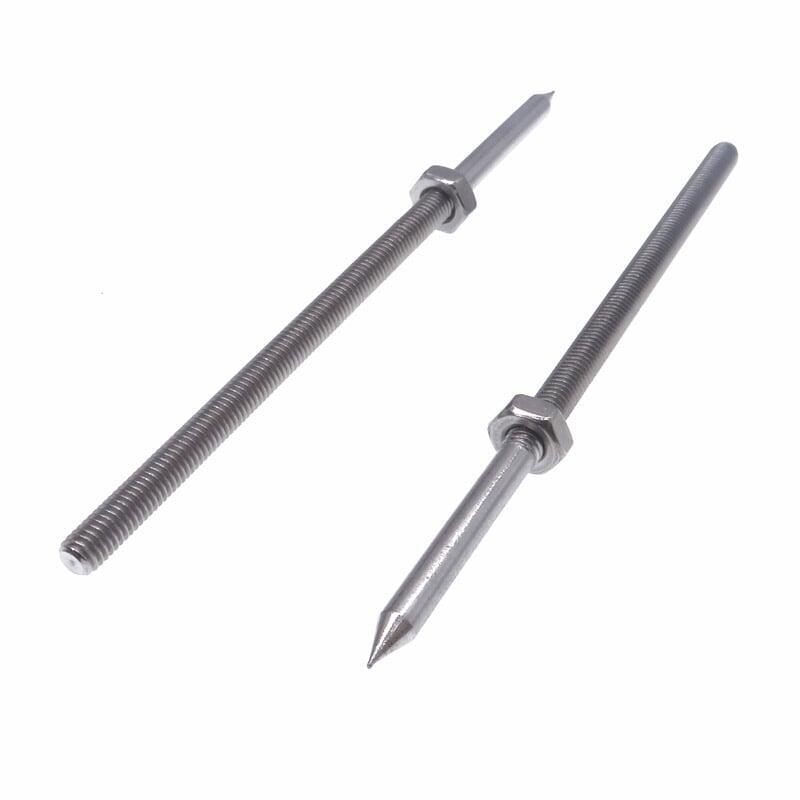

Double End Bolt with Hex Nut

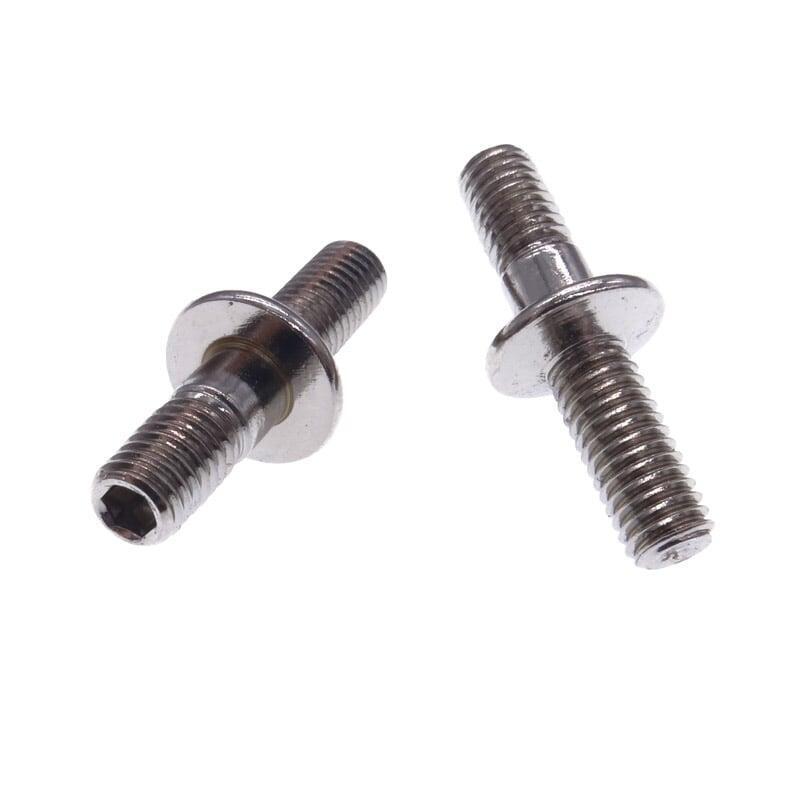

Round Double End Bolt Manufacturer

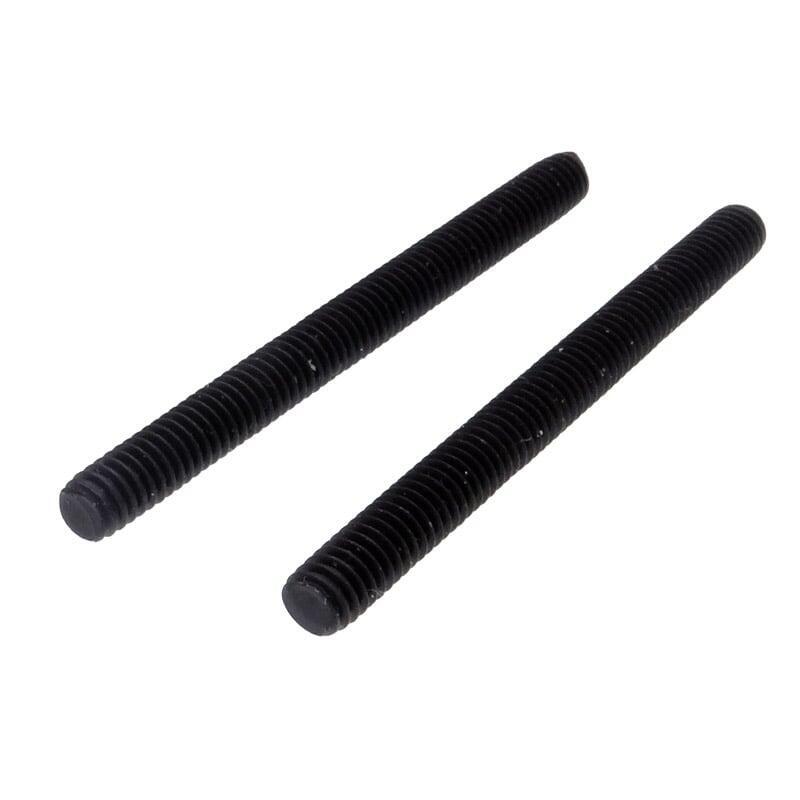

Galvanized Threaded Rod Customize

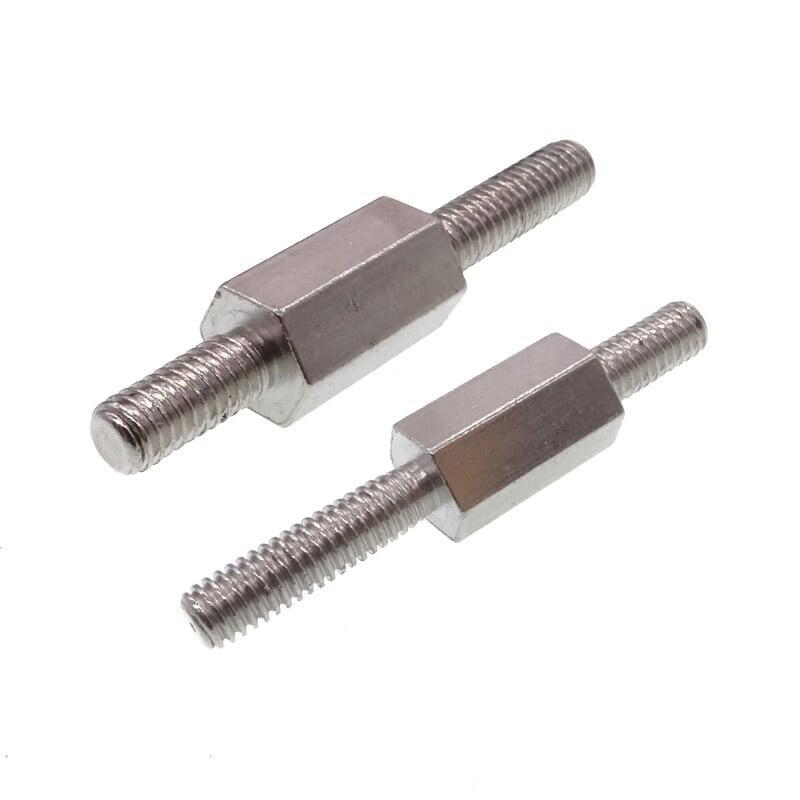

M6 Double End Thread Hex Stud

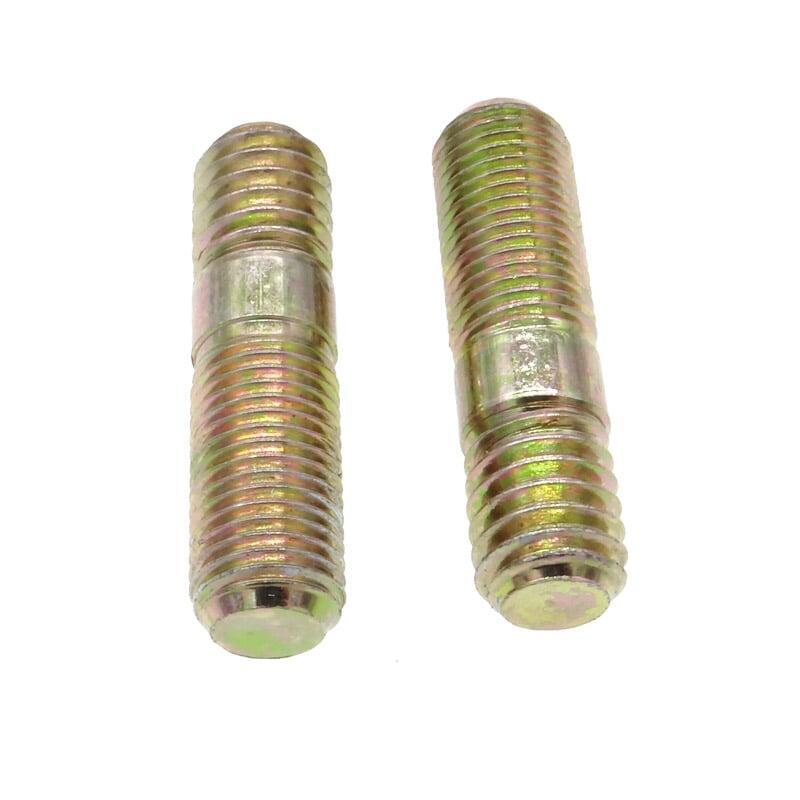

M8 Double End Thread Stud

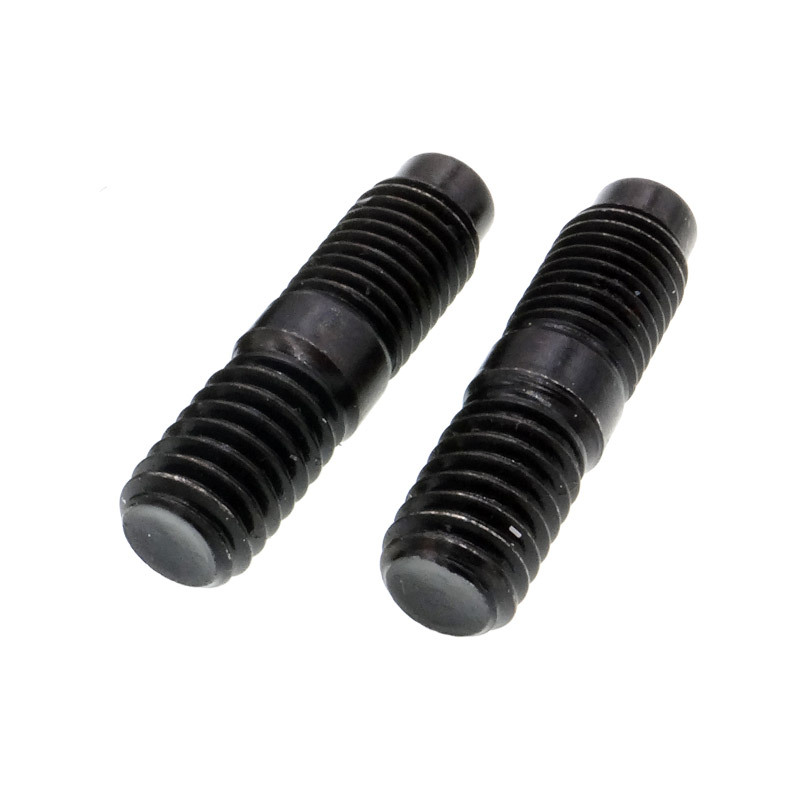

Double Ended Bolt Different Sizes

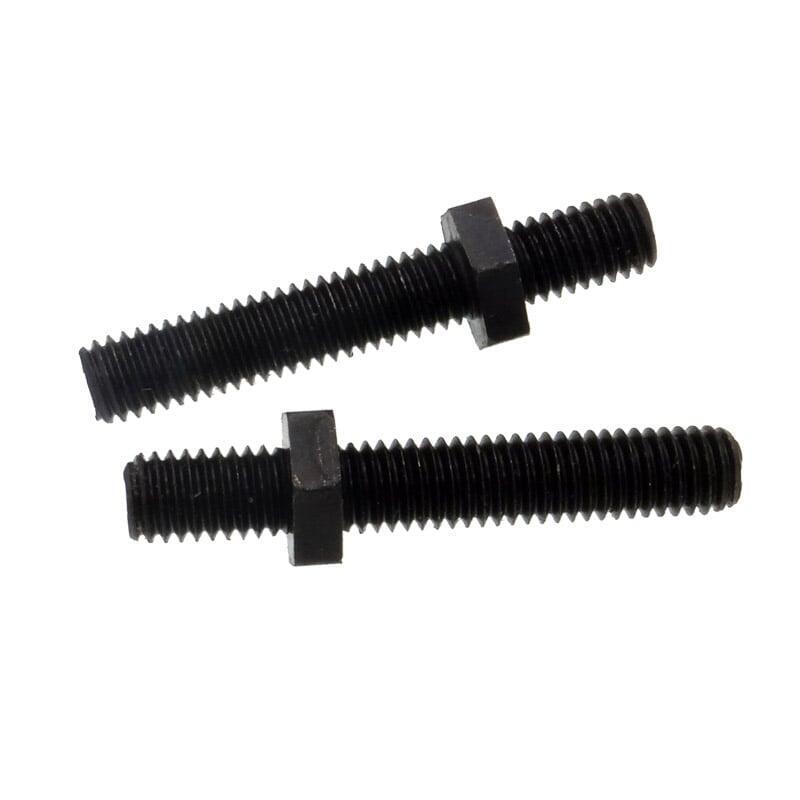

Double End Stud with Hex

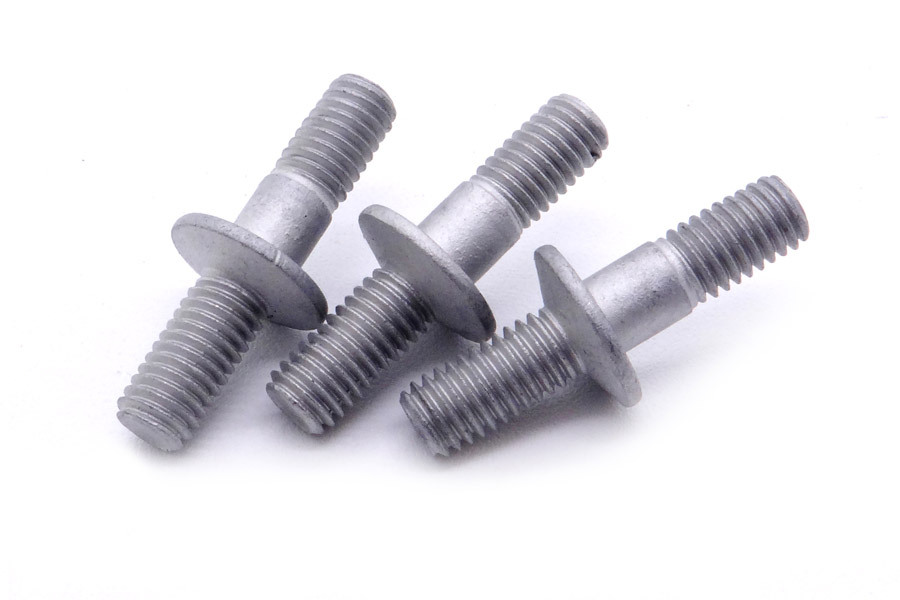

M5 Double End Bolt for Industrial Cabinet and Door Hinges
About King Tower
With 20+ years custom made experience, we offer the most reliable source for high quality fastener parts ranging from screws and bolts to CNC machining parts, stamping parts, and more.
Why We’re the Best
King-Tower over 20 years specializing in manufacturing non-standard fasteners to specific industrial needs.
Over 200 Units Produced Machine
King Tower equipped with different production machine contain cold heading forming machine, thread rolling machine, programmable CNC machines, automatic lathe machines, spring machine and stamping machine, and include secondary process like drilling, cutting and grooving, total machine over 200 units to meet the complex fastener production.
Diverse range of test machines to ensure the quality and functionality
King Tower with a comprehensive array of testing machinery, that can meticulously assess various aspects, including salt spray test machine, two-dimensional image measuring instrument, hardness test machine, optical image screening machine and torque machine.
Diversity of customized fasteners
King Tower produced screw thread diameter from 0.8mm to 20mm, length from 2mm to 400mm, with specialized material include carbon/alloy steel, stainless steel, aluminum, brass and titanium. Full rang of surface treatment including plating, electrophoresis, coating, Dacromet, laser engraving and vacuum coating.
